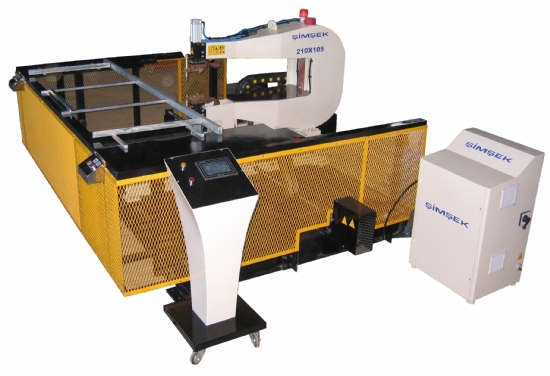

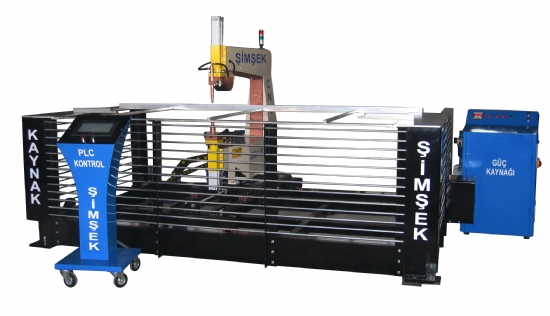

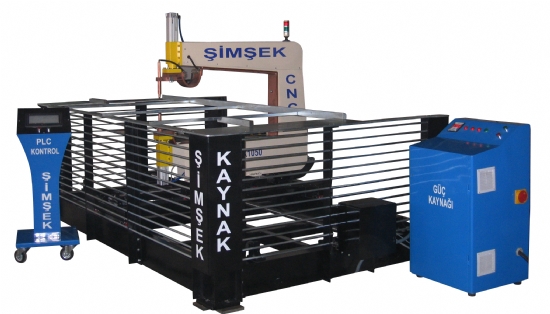

SPOT RESISTANCE WELDING ROBOT
Working Voltage	:	3 x 380 v 50-60 Hz
X-Y Axis Capabilities	:	1050 mm - 2250 mm
Maximum Rpm	:	4000 revolution / minute
Welding Power	:	70/120/150 KVA
Weldable Thicknesses for the Low Carbon Steel Sheets	:	4 + 4 mm
Air Pressure	:	6-8 bar
Max. Welding Combinations Memory Number	:	100
Max. X-Y Coordinations Input Capacity	:	1000
Usage Areas; This two axis Spot Resistance Welding Robot is among the indispensables of the manufacturing industry. It makes spot resistance welds to the previously given coordinates and minimize the manufacturing labor. It produces with high quality and with serially minimizing the operator aids. It is mostly used for DKP Low Carbon Steel , Stainless Steel , and Galvanised Steel plates / sheets which demand high quality and serial production. Steel doors , elevator cabinets pannel walls and doors , electric cabinets and wire mesh productions are among the possible workpieces of this machine.
